Lab 12 — From jitter to eye to BER (SerDes bathtub)

Breadcrumb: Simulation labs › Noise & jitter › This page (eye / BER bathtub). Upstream: lab_08, lab_11; downstream: lab_13.

This lab settles, once and for all, the "why care about jitter" question of the whole ISF course: the oscillator's phase noise integrates into rms timing jitter $\sigma_t$ (see lab_08); this $\sigma_t$ is the random jitter (RJ) of the SerDes sampling clock; RJ closes the eye diagram (the opening formed by overlaying many bits) and sets the BER (bit-error rate). We plot the eye diagram and the BER bathtub (a curve of BER versus sampling instant, shaped like a bathtub).

Physical intuition (conclusion first): an ideal clock always samples at the exact center of the UI (unit interval, the time span of one bit), $UI/2$ away from either data edge — the safest spot. With jitter, the sampling instant wanders randomly left and right; whenever it wanders past either edge, the wrong bit is sampled. RJ is Gaussian and unbounded, so there is always a tail that crosses an edge — the BER is always $>0$; its size is set by "how many $\sigma$ you sit from the edge". The more $\sigma$ of margin, the error probability drops exponentially via $Q(\cdot)$ (the Gaussian tail) — which is why the bathtub floor is deep and flat.

1. Learning objectives

• Map rms jitter $\sigma_t$ to eye closure and BER.
• Write down and understand the RJ-only BER bathtub formula (the SerDes BER expression of spec section 10.2).
• See that "larger $\sigma_t$ → narrower usable sampling window (eye opening at a target BER)".
• Link the $Q$-function (Gaussian tail) with "how many $\sigma$ from the edge" to grasp the BER's exponential sensitivity.

2. Mathematical model

$Q$-function (Gaussian tail probability).

$$Q(x)=\frac12\,\mathrm{erfc}\!\Big(\frac{x}{\sqrt2}\Big),$$

the probability that a standard Gaussian exceeds $x$ $\sigma$. The larger $x$, the smaller $Q(x)$ (exponential-like decay).

BER bathtub (RJ only). Sample within the UI at offset $t$ relative to the eye center, with the left edge at $-UI/2$ and the right edge at $+UI/2$. The sampling instant is dithered by Gaussian jitter $\sigma_t$; crossing either edge produces an error (spec section 10.2, "SerDes BER (RJ)"):

$$\text{BER}(t)=\frac12\Big[\,Q\!\Big(\frac{UI/2-t}{\sigma_t}\Big)+Q\!\Big(\frac{UI/2+t}{\sigma_t}\Big)\Big].$$

• Term-by-term physics: the first term is the probability of jittering past the right edge (distance $UI/2-t$); the second is that of jittering past the left edge (distance $UI/2+t$). The leading $\tfrac12$ is the bookkeeping for "a transition is present half the time" (RJ-only first-order model).
• Eye center $t=0$: the two terms are symmetric, $\text{BER}(0)=Q(UI/(2\sigma_t))$ — both edges sit $UI/(2\sigma_t)$ $\sigma$ away. This ratio is everything: it is called the "eye half-width in units of $\sigma$".
• Dimension check: the argument of $Q$, $(UI/2-t)/\sigma_t$, is $[\text{s}]/[\text{s}]$, dimensionless ✓; the BER is a probability (dimensionless) ✓.

The eye half-width (in $\sigma$) sets the BER. For $UI=100$ ps:

$$\frac{UI/2}{\sigma_t}=\frac{50\ \text{ps}}{\sigma_t}.$$

$\sigma_t=4$ ps → $12.5\sigma$; $\sigma_t=8$ ps → $6.25\sigma$. $Q(12.5)\sim10^{-36}$ (extremely deep), $Q(6.25)\sim2\times10^{-10}$ (much shallower) — double the jitter and the bathtub floor rises by dozens of orders of magnitude.

3. Block diagram

4. Core Python code

Verbatim from main() in simulations/lab_12_serdes_eye_ber.py: the left panel overlays the eye with eye_traces; the right panel plots bathtub curves for three values of $\sigma_t$ with ber_bathtub.

ui = 100e-12       # 10 Gb/s -> 100 ps UI
sigma_t = 4e-12    # 4 ps rms RJ (e.g. from an integrated 5 GHz clock)

# (a) eye diagram
t, traces = eye_traces(sigma_t, ui, n_traces=300, rng=RNG)
for tr in traces:
    ax.plot(t, tr, color="tab:blue", alpha=0.05, lw=1.0)

# (b) BER bathtub
toff = np.linspace(-ui / 2 * 0.98, ui / 2 * 0.98, 400)
for st, c in zip([2e-12, 4e-12, 8e-12], ["tab:green", "tab:orange", "tab:red"]):
    ber = ber_bathtub(toff, st, ui)
    ax.semilogy(toff / ui, ber, color=c, label=fr"$\sigma_t$={st*1e12:.0f} ps")
ax.axhline(1e-12, color="gray", ls="--", lw=1, label="BER = $10^{-12}$")

The underlying ber_bathtub and Q (serdes_utils.py) are a verbatim implementation of the spec section 10.2 BER formula:

def Q(x):
    """Gaussian tail probability Q(x) = 0.5*erfc(x/sqrt(2))."""
    return 0.5 * erfc(np.asarray(x, dtype=float) / np.sqrt(2.0))

def ber_bathtub(t_offsets, sigma_t, ui):
    t = np.asarray(t_offsets, dtype=float)
    half = ui / 2.0
    ber = 0.5 * (Q((half - t) / sigma_t) + Q((half + t) / sigma_t))
    return np.maximum(ber, 1e-300)

• eye_traces adds $\mathcal{N}(0,\sigma_t/UI)$ jitter to each transition's edge time (in UI units); overlaying 300 traces forms the eye.
• ber_bathtub applies the $Q$-function directly; np.maximum(ber, 1e-300) puts a floor under the log plot to avoid $\log 0$.

5. Full script path

simulations/lab_12_serdes_eye_ber.py (Dependencies: Q, ber_bathtub, eye_traces from simulations/common/serdes_utils.py; savefig from simulations/common/plot_utils.py. Q uses scipy.special.erfc.)

How to run: python scripts/run_all_sims.py.

6. Parameter table

Parameter	Variable	Value	Notes
Unit interval	ui	$100\times10^{-12}$ s	10 Gb/s NRZ → 100 ps UI
Eye-diagram jitter	sigma_t	$4\times10^{-12}$ s	4 ps rms RJ (e.g. integrated from a 5 GHz clock)
Bathtub jitter sweep	—	$\{2,4,8\}$ ps	three bathtub curves
Number of eye traces	n_traces	$300$	overlay density
BER sample points	toff	$400$ ($\pm0.98\,UI/2$)	bathtub-curve resolution
Target BER	—	$10^{-12}$	common SerDes spec line
Random seed	RNG	default_rng(12)	reproducible results

7. Units table

Quantity	Symbol	Unit	Value in this lab
Unit interval	$UI$	s	100 ps
rms jitter	$\sigma_t$	s	2 / 4 / 8 ps
Sampling offset	$t$	s (plotted in UI units)	$\pm UI/2$
Eye half-width (in σ)	$UI/(2\sigma_t)$	— (dimensionless)	25 / 12.5 / 6.25
BER	$\text{BER}(t)$	— (probability)	$1\sim10^{-18}$
$Q$ argument	$(UI/2\mp t)/\sigma_t$	— (dimensionless)	number of σ from the edge

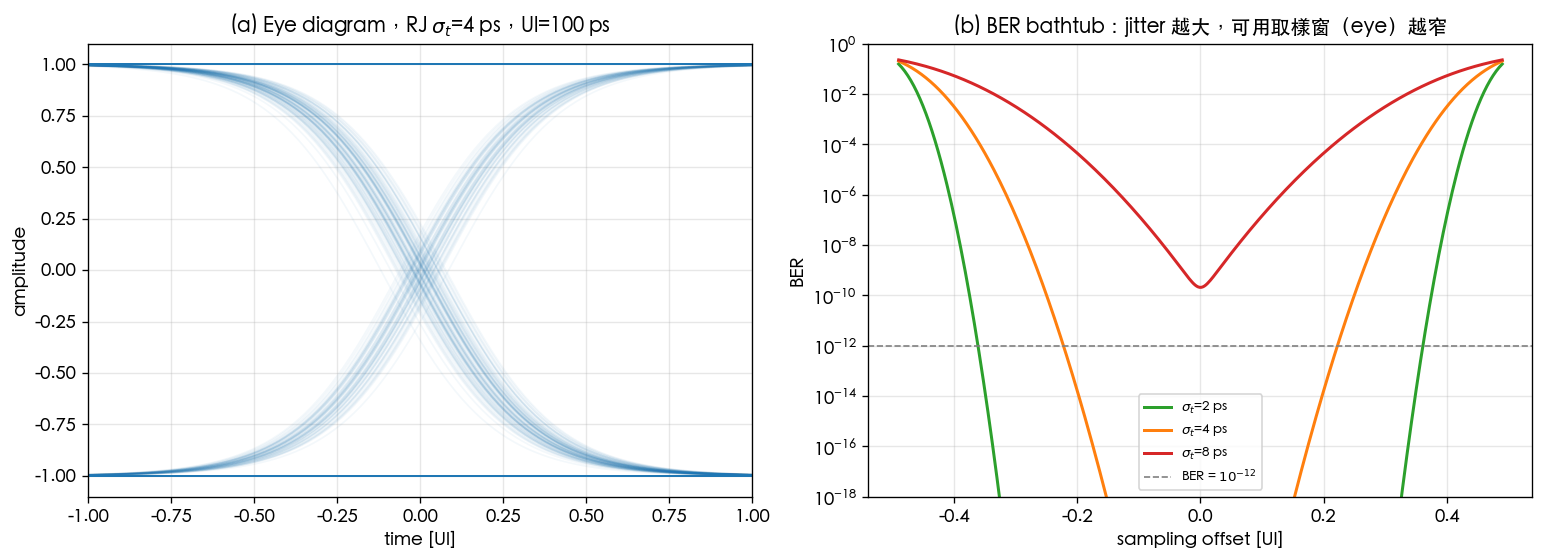

8. Simulation figure

9. How to read the figure

• Left panel (eye diagram): 300 jitter-dithered transitions overlaid, leaving a diamond-shaped eye opening at the center. Jitter smears the edges out and narrows the opening horizontally; with even more jitter the eye closes until no sampling instant is safe.
• Right panel (BER bathtub): three bathtub curves (green/orange/red = $\sigma_t=2/4/8$ ps).
  • Floor depth: the smaller $\sigma_t$, the deeper the bathtub floor (the lower the BER). The green curve (2 ps) bottoms out beyond the plot ($UI/(2\sigma_t)=25\sigma$, $Q$ vanishingly small); the red curve (8 ps) only reaches the $\sim10^{-10}$ level.
  • Walls: near $\pm0.5$ UI (i.e. the edges) the BER shoots up to $\sim0.5$ (a coin flip).
  • Usable window (eye opening @ BER): the span between where the two walls cross the $10^{-12}$ dashed line is the "window in which sampling is safe at that BER". The larger $\sigma_t$, the narrower this window — this is "jitter eating the timing budget".
• How to use it: given the data rate (UI) and target BER, back out the tolerable $\sigma_t$; then require the clock's integrated phase noise to stay below that $\sigma_t$ (closing the loop with lab_08).

10. Corresponding paper equations/figures

• BER formula: spec section 10.2, "SerDes BER (RJ)": $\text{BER}(t)=\tfrac12[Q(\tfrac{UI/2-t}{\sigma_t})+Q(\tfrac{UI/2+t}{\sigma_t})]$, $Q(x)=\tfrac12\mathrm{erfc}(x/\sqrt2)$. Generic communications/SerDes practice — external literature, not among the five source PDFs — supplemented from standard references.
• Jitter source: $\sigma_t$ comes from integrating the phase noise (spec Eq. 19, see lab_08); the underlying phase-accumulation mechanism traces back to the ISF/LTV model of [P1] and the jitter discussion in [P2].
• RJ Gaussian and unbounded: consistent with the Monte-Carlo conclusion of lab_11 (Gaussian tail → BER always $>0$).
• Corresponds to site figure serdes_eye_ber_bathtub.png; for the design-level chain see serdes_clocking_connection.

11. Limitations and approximations

• This is a pedagogical toy model, not transistor-level: the eye approximates NRZ transitions with tanh-smoothed edges and has no real channel/equalizer; the BER uses the closed-form $Q$ expression, not Monte-Carlo error counting.
• RJ-only (random jitter only): ignores DJ (deterministic jitter — bounded, from ISI, duty-cycle distortion, crosstalk, etc.). Real jitter is dual-Dirac (RJ ⊛ DJ); DJ pushes the bathtub walls inward and puts a plateau on the floor. This lab demonstrates only the Gaussian-tail RJ part.
• No amplitude noise / vertical eye closure: timing only (horizontal eye); vertical closure from voltage noise is not included.
• Ideal two-level signaling, no ISI: assumes clean transitions between adjacent bits and no inter-symbol interference; practical high-speed channels need CTLE/DFE equalization.
• The $\tfrac12$ bookkeeping: transition density taken as 0.5 (random-data average); specific patterns will differ.

Key takeaways

• Integrated phase noise → $\sigma_t$ → RJ of the SerDes sampling clock → eye closure → BER.
• $\text{BER}(t)=\tfrac12[Q(\tfrac{UI/2-t}{\sigma_t})+Q(\tfrac{UI/2+t}{\sigma_t})]$; at the eye center $\text{BER}(0)=Q(UI/(2\sigma_t))$.
• The key quantity is the eye half-width in units of $\sigma$, $UI/(2\sigma_t)$: double the jitter and the BER floor rises by dozens of orders of magnitude.
• Gaussian RJ is unbounded → the BER is always $>0$; the intersections of the bathtub with the target-BER line bound the usable sampling window.
